Kyocera

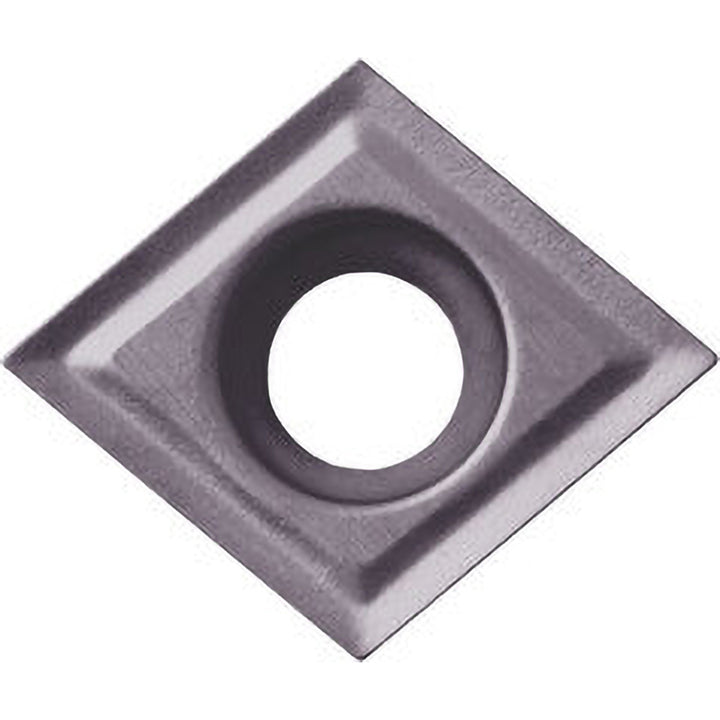

CCGT09T302MF Carbide Insert, Grade PR1725, MEGACOAT NANO PLUS - Kyocera TLM00050
MFR# TLM00050ISO/ANSI# CCGT32505MFPR1725Series ISOI
$18.72List $26.95
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradePR1725
MaterialCarbide
CoatingMEGACOAT NANO PLUS
Description
The Kyocera TLM00050 is a CCGT09T302MF carbide indexable insert, grade PR1725, MEGACOAT NANO PLUS coated. Suited for steel.
Specifications
Chip breakerF
Clearance codeC
Coating finishMEGACOAT NANO PLUS
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCGT32505MFPR1725
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32505
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T302MF
Length range0.3000 - 0.4000
Manufacturers catalog numberTLM00050
Manufacturer gradePR1725
Material gradeP01; P10; P20; P30; M01; M10; M20; M30
Maximum depth of cut0.1250
Multi use applicationBoring; External Turning; Facing; Internal Facing; Sub-Spindle
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
