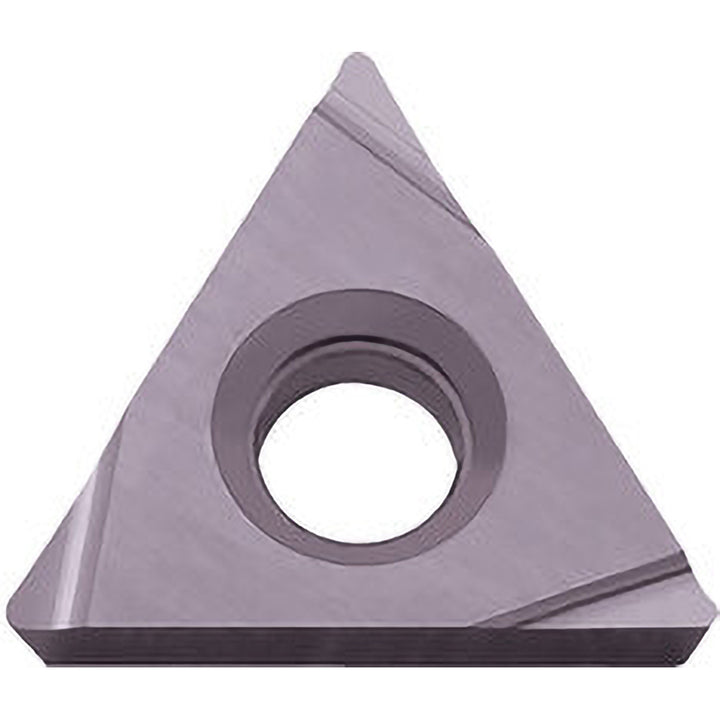

TPGH160302L Carbide Insert, Grade PR1725, MEGACOAT NANO PLUS - Kyocera TLM00304

Kyocera

TPGH160302L Carbide Insert, Grade PR1725, MEGACOAT NANO PLUS - Kyocera TLM00304

MFR# TLM00304ISO/ANSI# TPGH160302Series ISOI

$24.18List $34.80 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradePR1725
MaterialCarbide
CoatingMEGACOAT NANO PLUS

Description

The Kyocera TLM00304 is a TPGH160302L carbide indexable insert, grade PR1725, MEGACOAT NANO PLUS coated. Suited for steel.

Specifications

Ansi insert codeTPGH3205
Ansi size code3205
Clearance codeP
Coating finishMEGACOAT NANO PLUS
Coating processPVD
Corner radius in1/128
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1772
Included angle60
Industry standard numberTPGH3205LPR1725
Inscribed circle in3/8
Insert handLeft Hand
Insert holding methodScrew
Insert length0.6501
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3205
Insert styleTPGH
Insert thickness in1/8
Iso codeTPGH160302L
Iso insert codeTPGH160302
Iso size code160302
Length range0.6500 - 0.7000
Manufacturers catalog numberTLM00304
Manufacturer gradePR1725
Material gradeP01; P10; P20; P30; M01; M10; M20; M30
Maximum depth of cut0.2167
Multi use applicationBack Boring; Boring; Copying; External Turning; Internal Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialSteel; Stainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6501
Wiper edgeNo
