Kyocera

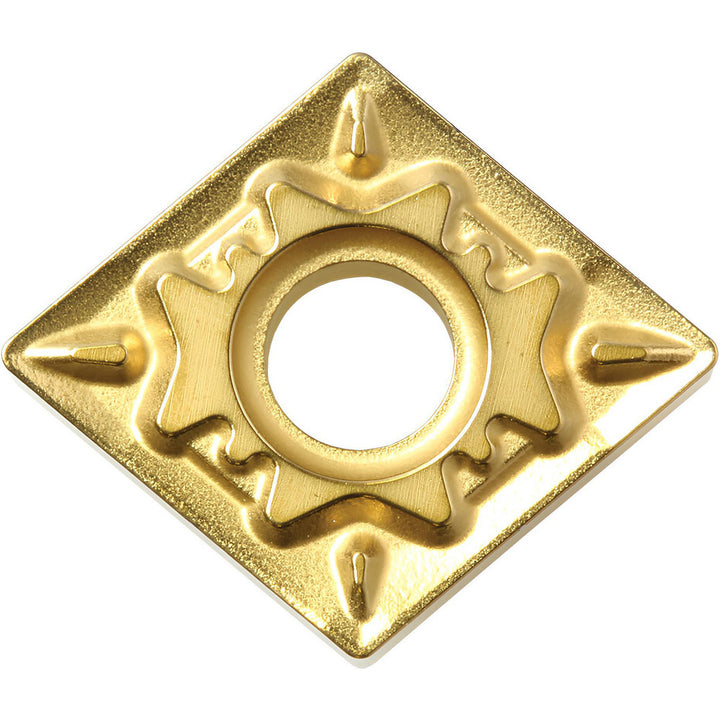

CNMG120408HQ Cermet Insert, Grade PV730, TiAlN - Kyocera TLP00079
MFR# TLP00079ISO/ANSI# CNMG432HQPV730Series ISOI
$13.13List $18.89
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradePV730
MaterialCermet
CoatingTiAlN
Description
The Kyocera TLP00079 is a CNMG120408HQ cermet indexable insert, grade PV730, TiAlN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNMG432HQPV730
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCermet
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408HQ
Length range0.5000 - 0.6000
Manufacturers catalog numberTLP00079
Manufacturer gradePV730
Material gradeP10; P20
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle-15
Relief angle0
Tolerance codeM
Width in1/2in
Wiper edgeNo
