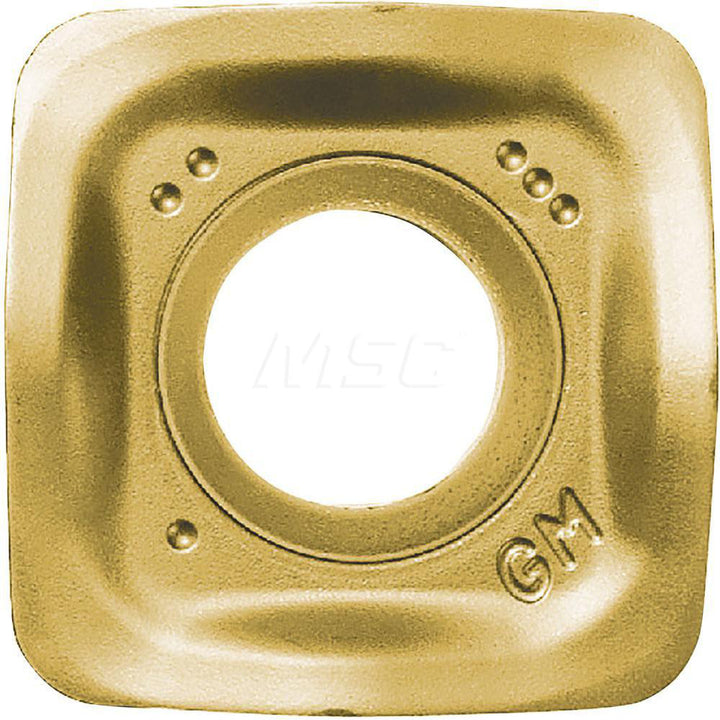

SOMT140520ER-GM Solid Carbide Insert, Grade CA6535, TiCN - Kyocera TMA05627
MFR# TMA05627ISO/ANSI# SOMT140520ER-GMCat# SOMT140520ERGMSeries MFHR
$18.89List $27.18
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeCA6535
MaterialSolid Carbide
CoatingTiCN
Description
The Kyocera TMA05627 is a SOMT140520ER-GM solid carbide indexable insert, grade CA6535, TiCN coated. Suited for stainless steel.
Specifications
Ansi codeSOMT140520ERGMCA6535
Chip breakerER-GM
Coating finishTiCN
Coating processCVD
Corner radius in5/64
Cutter series compatibilityMFH
Cutting edge styleHoned
Hole diameter0.2283
Included angle degree90
Inscribed circle0.5567
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140520
Insert styleSOMT
Iso codeSOMT140520ER-GM
Length0.5567
Length range0.5000 to 0.6000
Manufacturers catalog numberSOMT140520ERGM
Manufacturer gradeCA6535
Material applicationStainless Steel; Superalloys & Titanium
Maximum depth of cut0.4786
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle16.00
Secondary workpiece materialSuperalloys & Titanium
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.5567
