Kyocera

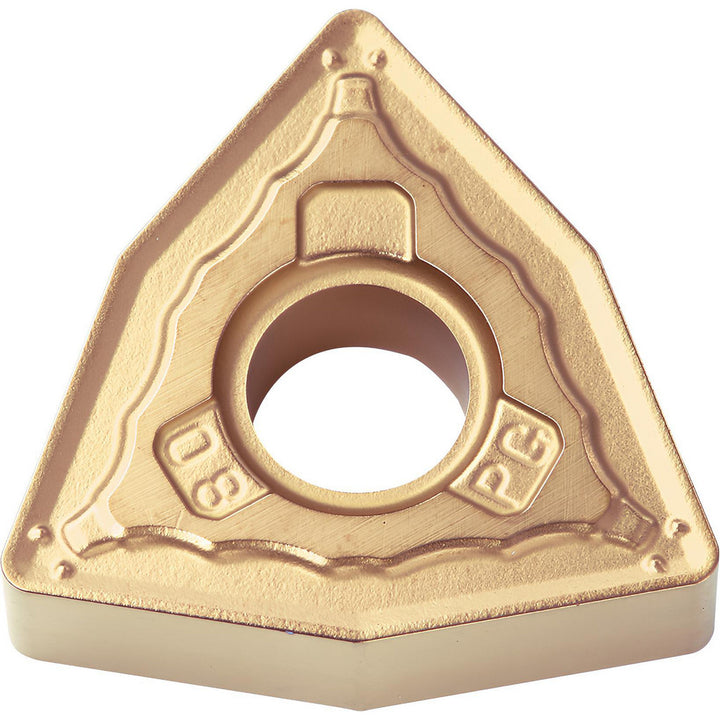

WNMG080404PG Carbide Insert, Grade CA025P, TiCN - Kyocera TMH00068
MFR# TMH00068ISO/ANSI# WNMG080404Series ISOI
$13.37List $19.23
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeCA025P
MaterialCarbide
CoatingTiCN
Description
The Kyocera TMH00068 is a WNMG080404PG carbide indexable insert, grade CA025P, TiCN coated. Suited for steel.
Specifications
Ansi insert codeWNMG431
Ansi size code431
Chip breakerPG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness
Hole diameter0.2032
Included angle80
Industry standard numberWNMG431PGCA025P
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404PG
Iso insert codeWNMG080404
Iso size code080404
Length range0.6500 - 0.7000
Manufacturers catalog numberTMH00068
Manufacturer gradeCA025P
Material gradeP10; P20; P30; P40
Maximum depth of cut0.0590
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle-15
Relief angle0
Side clearanceNegative
Tolerance codeM
Width0.6840
Wiper edgeNo
