Kyocera

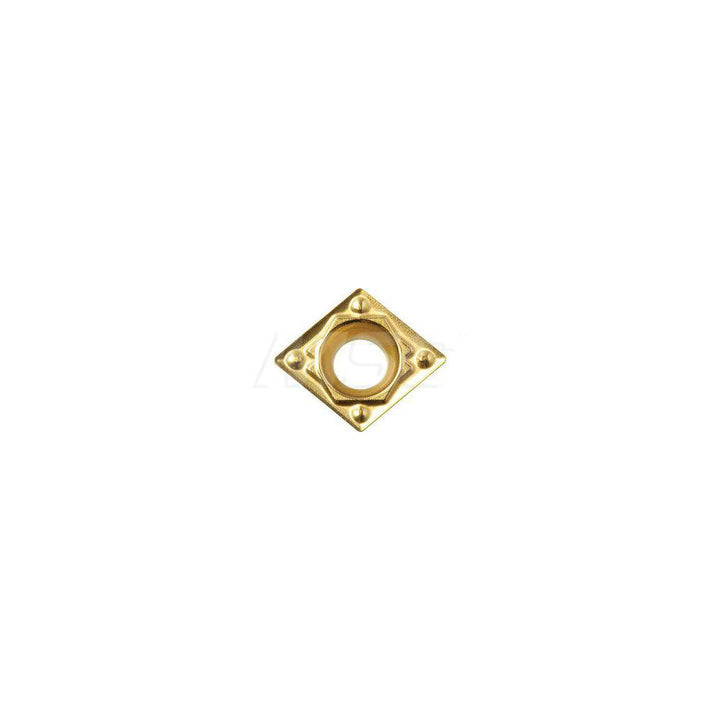

CPMH090304HQ Carbide Insert, Grade CA025P, TiCN - Kyocera TMH00402
MFR# TMH00402ISO/ANSI# CPMH321HQCA025PSeries ISOI
$14.43List $20.76
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeCA025P
MaterialCarbide
CoatingTiCN
Description
The Kyocera TMH00402 is a CPMH090304HQ carbide indexable insert, grade CA025P, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCPMH321HQCA025P
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeDiamond 80
Insert size code321
Insert styleCPMH
Insert thickness in1/8
Iso codeCPMH090304HQ
Length range0.3000 - 0.4000
Manufacturers catalog numberTMH00402
Manufacturer gradeCA025P
Material gradeP10; P20; P30; P40
Maximum depth of cut0.0590
Multi use applicationBoring; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
