Kyocera

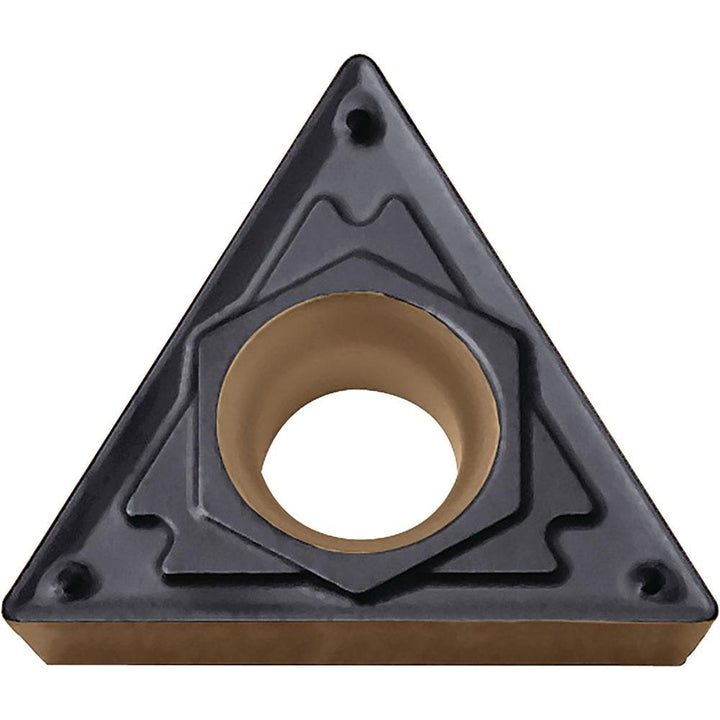

TPMT110304HQ Carbide Insert, Grade CA125P, TiCN/Al2O3/TiN - Kyocera TMK00413
MFR# TMK00413ISO/ANSI# TPMT110304HQCat# TPMT221HQCA125PSeries ISO Insert
$13.13List $18.89
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeCA125P
MaterialCarbide
CoatingTiCN/Al2O3/TiN
Description
The Kyocera TMK00413 is a TPMT110304HQ carbide indexable insert, grade CA125P, TiCN/Al2O3/TiN coated. Suited for carbon steel, alloy steel.
Specifications
Chip breakerHQ
Clearance codeP
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius in1/64
Hole diameter0.1299
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew; Clamp
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT110304HQ
Manufacturers catalog numberTPMT221HQCA125P
Manufacturer gradeCA125P
Multi use applicationBack Boring; Boring; Copying; External Turning; Internal Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCarbon Steel; Alloy Steel
RakePositive
Relief angle11.000
Tolerance codeM
Wiper edgeNo
