Kyocera

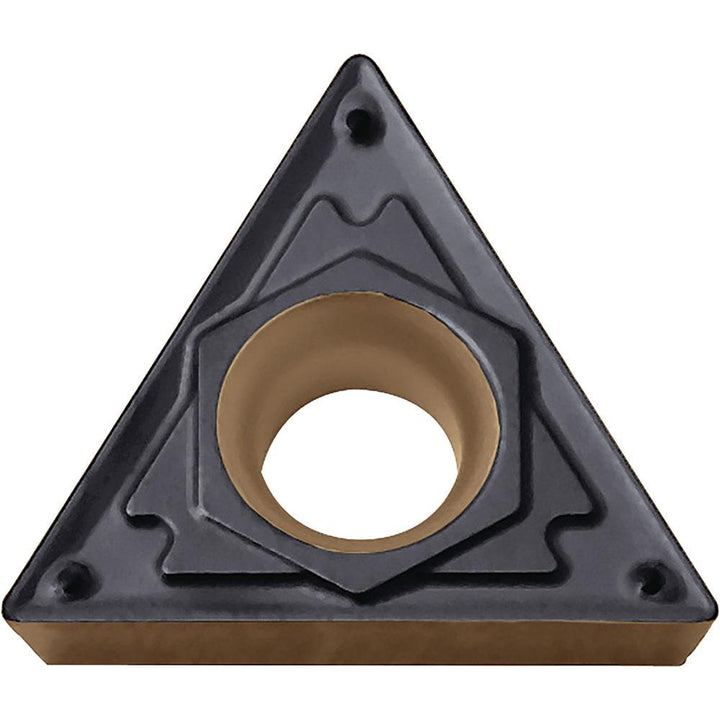

TPMT110308HQ Carbide Insert, Grade CA125P, TiCN/Al2O3/TiN - Kyocera TMK00414
MFR# TMK00414ISO/ANSI# TPMT110308HQCat# TPMT222HQCA125PSeries ISO Insert
$13.13List $18.89
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeCA125P
MaterialCarbide
CoatingTiCN/Al2O3/TiN
Description
The Kyocera TMK00414 is a TPMT110308HQ carbide indexable insert, grade CA125P, TiCN/Al2O3/TiN coated. Suited for carbon steel, alloy steel.
Specifications
Chip breakerHQ
Clearance codeP
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius in1/32
Hole diameter0.1299
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew; Clamp
Insert materialCarbide
Insert shapeTriangle
Insert size code222
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT110308HQ
Manufacturers catalog numberTPMT222HQCA125P
Manufacturer gradeCA125P
Multi use applicationBack Boring; Boring; Copying; External Turning; Internal Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCarbon Steel; Alloy Steel
RakePositive
Relief angle11.000
Tolerance codeM
Wiper edgeNo
