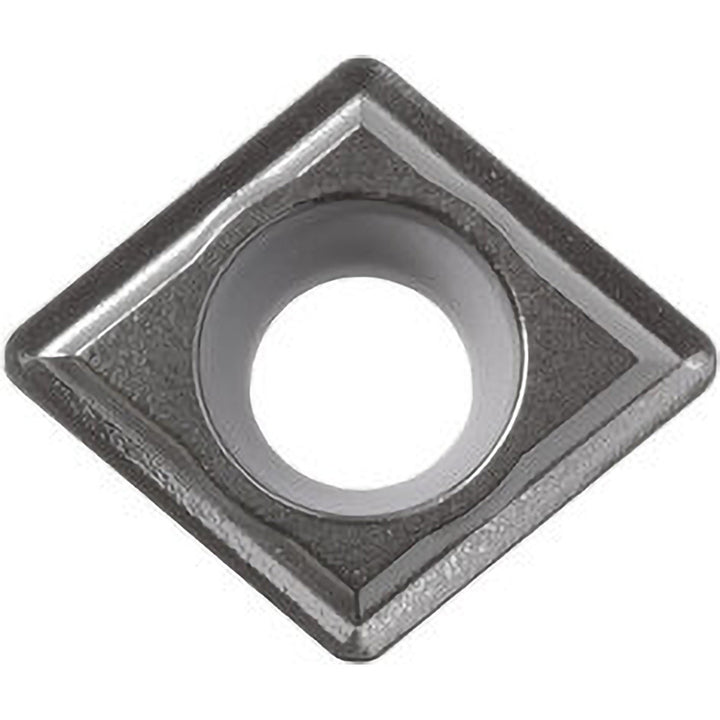

CCGT060204 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00110

Kyocera

CCGT060204 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00110

MFR# TSJ00110ISO/ANSI# CCGT2151TN60Series ISOI

$14.83List $21.33 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ00110 is a CCGT060204 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Clearance codeC
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Full radiusNo
Hole diameter0.1102
Included angle80degree
Industry standard numberCCGT2151TN60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length in1/4
Insert materialCermet
Insert shapeDiamond 80
Insert size code2151
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060204
Length range0.0000 - 0.3000
Manufacturers catalog numberTSJ00110
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.0833
Multi use applicationBoring; External Turning; Facing; Internal Facing; Sub-Spindle
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
