Kyocera

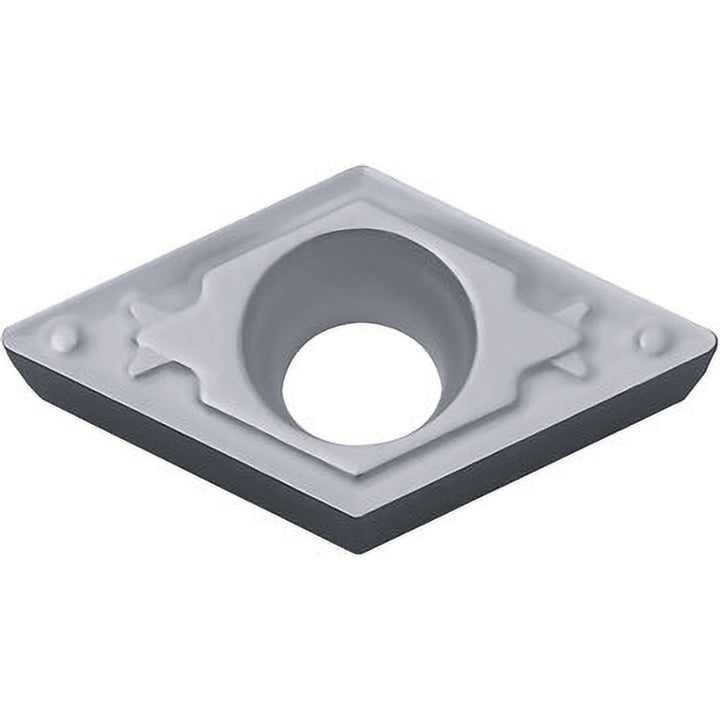

DCMT11T304HQ Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00738
MFR# TSJ00738ISO/ANSI# DCMT3251HQTN60Series ISOI
$15.11List $21.74
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ00738 is a DCMT11T304HQ cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerHQ
Clearance codeC
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCMT3251HQTN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9140
Insert materialCermet
Insert shapeDiamond 55
Insert size code3251
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304HQ
Length range0.7000 - 10.0000
Manufacturers catalog numberTSJ00738
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.3047
Multi use applicationBack Boring; Copying; External Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
