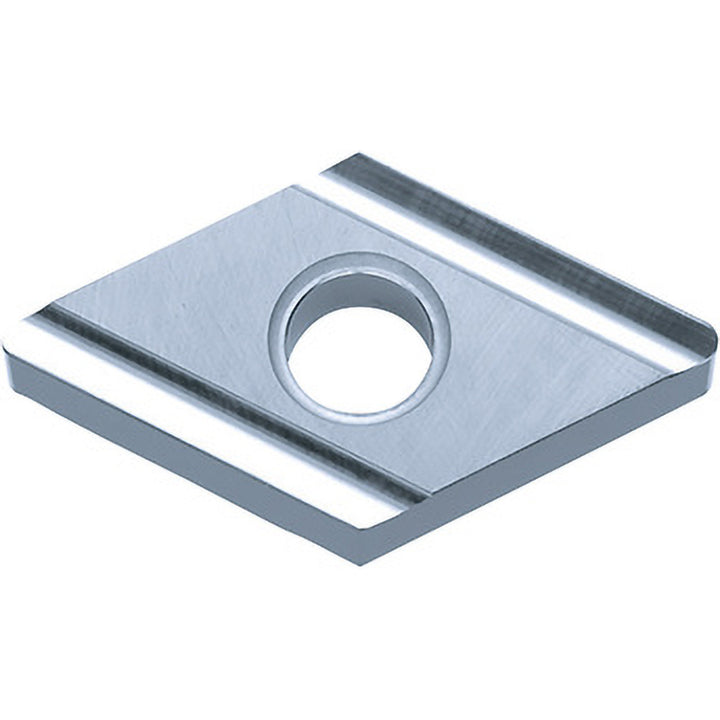

DNGG150404R Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00760

Kyocera

DNGG150404R Cermet Insert, Grade TN60, TiCN - Kyocera TSJ00760

MFR# TSJ00760ISO/ANSI# DNGG431RTN60Series ISOI

$25.84List $37.19 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ00760 is a DNGG150404R cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Full radiusNo
Hole diameter0.2032
Included angle55degree
Industry standard numberDNGG431RTN60
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodClamp; Pin
Insert length1.1820
Insert materialCermet
Insert shapeDiamond 55
Insert size code431
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG150404R
Length range0.7000 - 10.0000
Manufacturers catalog numberTSJ00760
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.3940
Multi use applicationBoring; Copying; External Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
