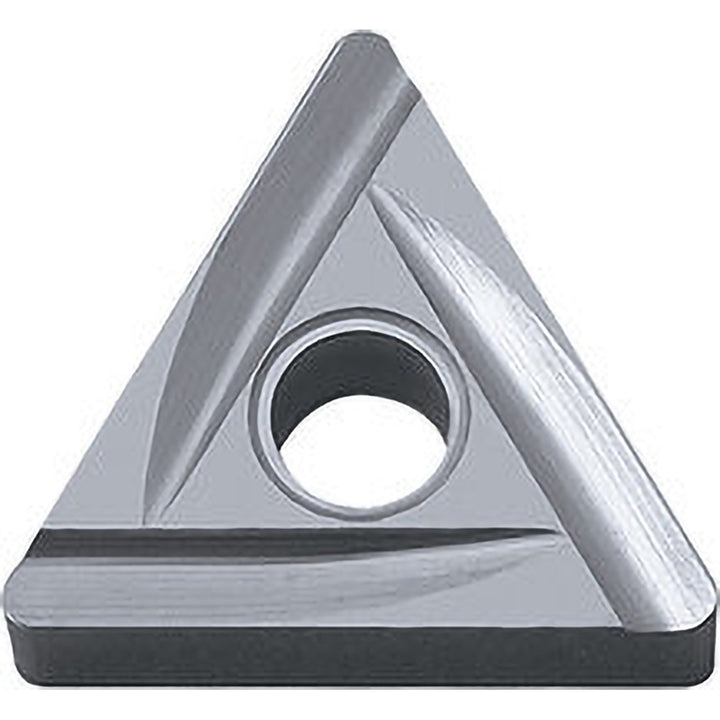

TNGG220404R-C Cermet Insert, Grade TN60, TiCN - Kyocera TSJ01957

Kyocera

TNGG220404R-C Cermet Insert, Grade TN60, TiCN - Kyocera TSJ01957

MFR# TSJ01957ISO/ANSI# TNGG431RCTN60Series ISOI

$20.94List $30.13 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ01957 is a TNGG220404R-C cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Chip breakerC
Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle60degree
Industry standard numberTNGG431RCTN60
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodClamp; Pin
Insert length0.8668
Insert materialCermet
Insert shapeTriangle
Insert size code431
Insert styleTNGG
Insert thickness in3/16
Iso codeTNGG220404R-C
Length range0.7000 - 10.0000
Manufacturers catalog numberTSJ01957
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2889
Multi use applicationBoring; Chamfering; Copying; External Turning; Facing; Up Facing
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle-14
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width0.8668in
Wiper edgeNo
