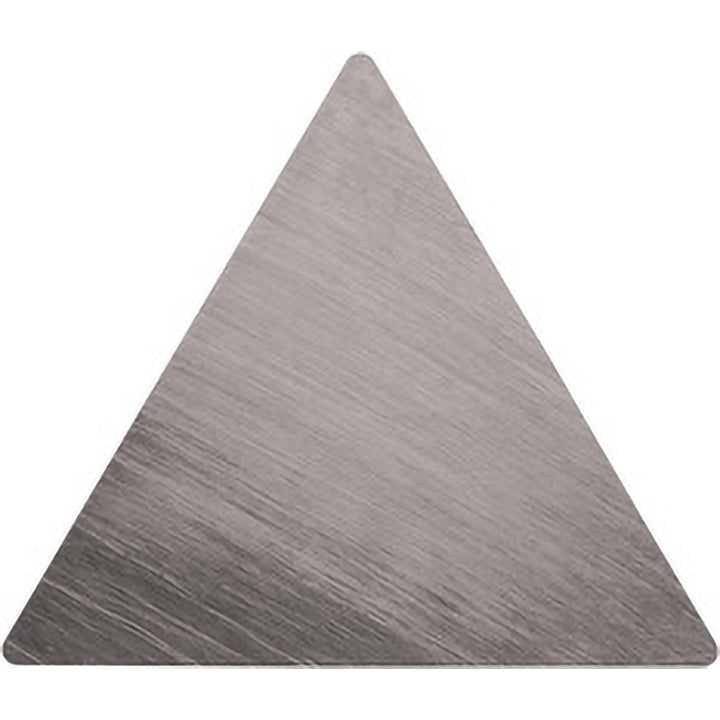

TPGN110308 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ02670

Kyocera

TPGN110308 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ02670

MFR# TSJ02670ISO/ANSI# TPG222TN60Series ISOI

$11.16List $16.07 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ02670 is a TPGN110308 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Included angle60degree
Industry standard numberTPG222TN60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4334
Insert materialCermet
Insert shapeTriangle
Insert size code222
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN110308
Length range0.4000 - 0.5000
Manufacturers catalog numberTSJ02670
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1445
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width0.4334in
Wiper edgeNo
