Kyocera

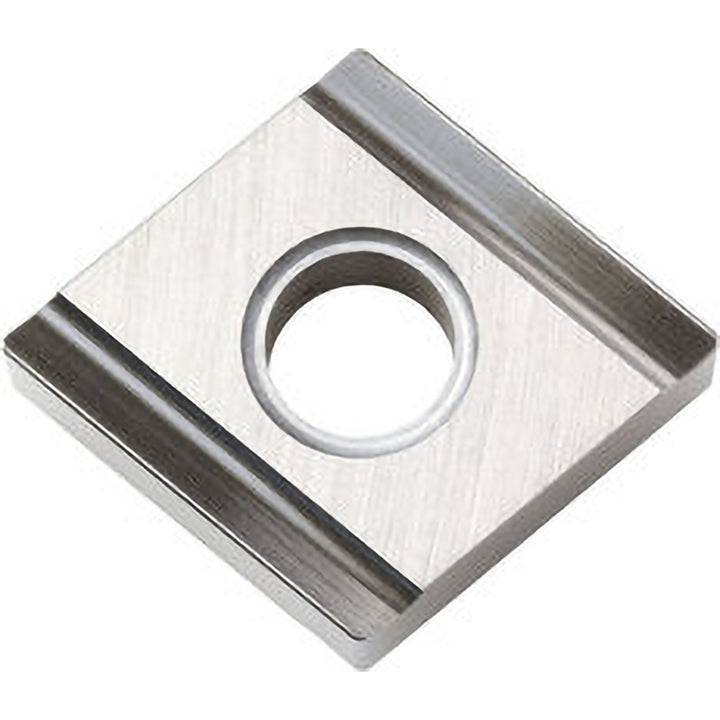

CNGG4302FR Cermet Insert, Grade TN60, TiCN - Kyocera TSJ89037
MFR# TSJ89037ISO/ANSI# CNGG4302FRTN60Series ISOI
$24.58List $35.37
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ89037 is a CNGG4302FR cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerF
Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/256
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNGG4302FRTN60
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCermet
Insert shapeDiamond 80
Insert size code4302
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG4302FR
Length range0.5000 - 0.6000
Manufacturers catalog numberTSJ89037
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle-15
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
