Kyocera

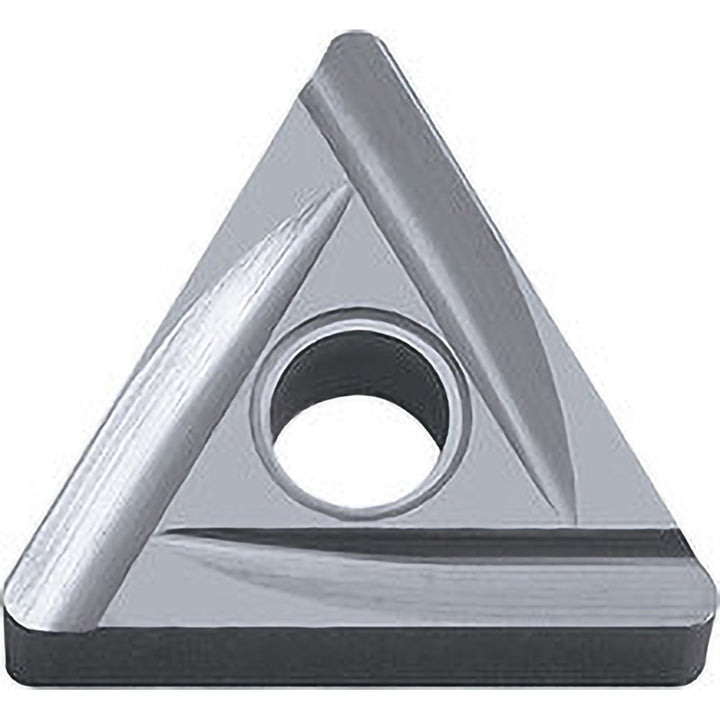

TNGG322LC Cermet Insert, Grade TN60, TiCN - Kyocera TSJ89163
MFR# TSJ89163ISO/ANSI# TNGG322LCTN60Series ISOI
$14.75List $21.22
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ89163 is a TNGG322LC cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Chip breakerC
Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNGG322LCTN60
Inscribed circle in3/8
Insert handLeft Hand
Insert holding methodClamp; Pin
Insert length0.6501
Insert materialCermet
Insert shapeTriangle
Insert size code322
Insert styleTNGG
Insert thickness in1/8
Iso codeTNGG322LC
Length range0.6500 - 0.7000
Manufacturers catalog numberTSJ89163
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2167
Multi use applicationBoring; Chamfering; Copying; External Turning; Facing; Up Facing
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle-14
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width0.6501in
Wiper edgeNo
