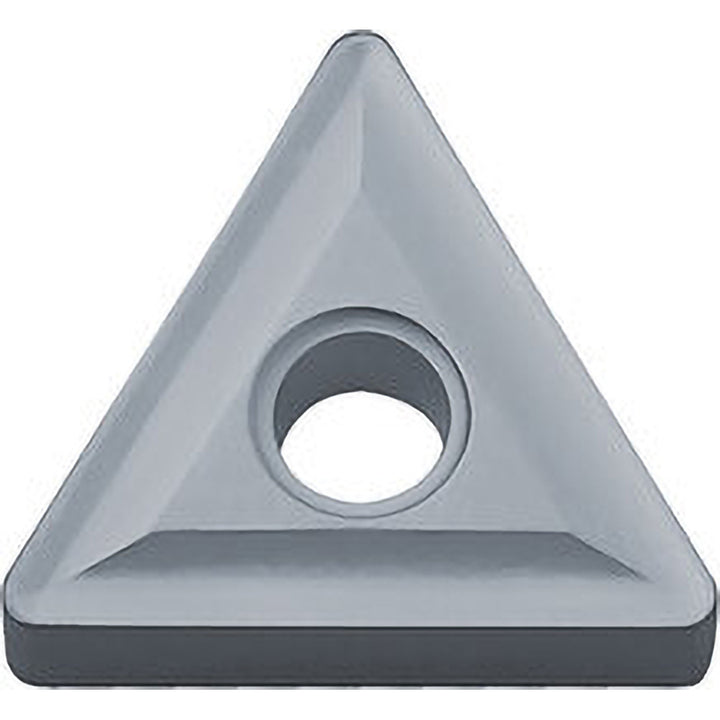

TNMG322 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ89186

Kyocera

TNMG322 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ89186

MFR# TSJ89186ISO/ANSI# TNMG322TN60Series ISOI

$6.85List $9.85 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ89186 is a TNMG322 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNMG322TN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6501
Insert materialCermet
Insert shapeTriangle
Insert size code322
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG322
Length range0.6500 - 0.7000
Manufacturers catalog numberTSJ89186
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.2167
Multi use applicationBoring; Chamfering; Copying; External Turning; Facing
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width0.6501in
Wiper edgeNo
