Kyocera

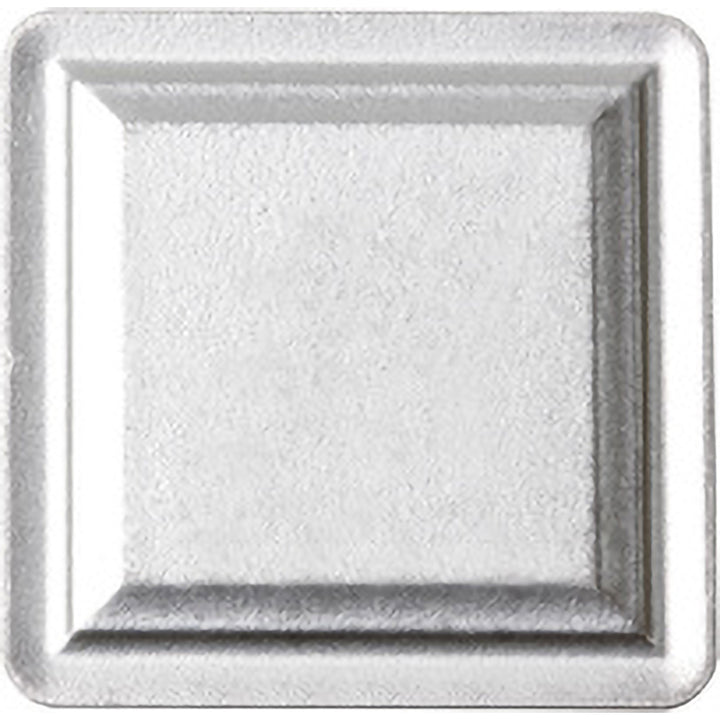

SPMR322 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ89269
MFR# TSJ89269ISO/ANSI# SPMR322TN60Series ISOI
$7.54List $10.84
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeTN60
MaterialCermet
CoatingTiCN
Description
The Kyocera TSJ89269 is a SPMR322 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.
Specifications
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Included angle90degree
Industry standard numberSPMR322TN60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length in3/8
Insert materialCermet
Insert shapeSquare
Insert size code322
Insert styleSPMR
Insert thickness in1/8
Iso codeSPMR322
Length range0.3000 - 0.4000
Manufacturers catalog numberTSJ89269
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1250
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
