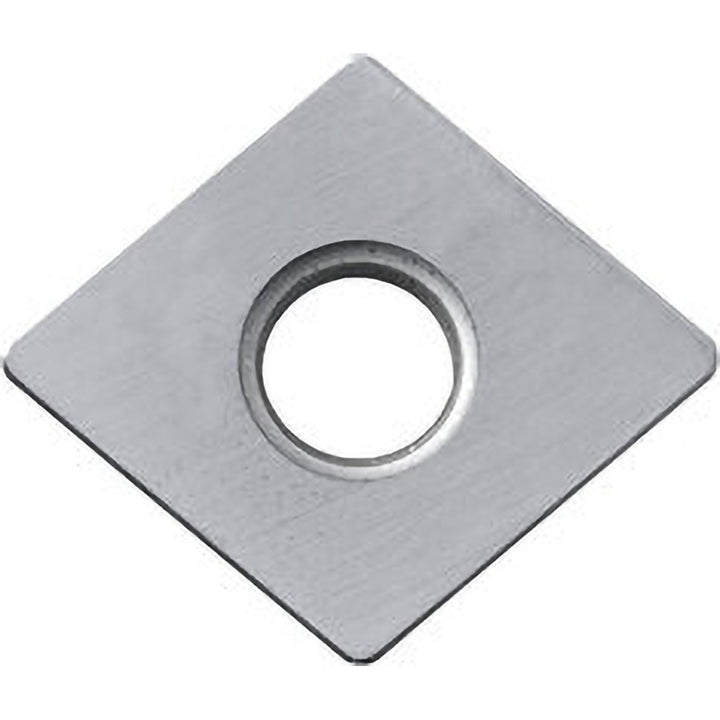

CNGA432 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ89270

Kyocera

CNGA432 Cermet Insert, Grade TN60, TiCN - Kyocera TSJ89270

MFR# TSJ89270ISO/ANSI# CNGA432TN60Series ISOI

$15.04List $21.64 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTN60
MaterialCermet
CoatingTiCN

Description

The Kyocera TSJ89270 is a CNGA432 cermet indexable insert, grade TN60, TiCN coated. Suited for steel.

Specifications

Clearance codeN
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNGA432TN60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCermet
Insert shapeDiamond 80
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA432
Length range0.5000 - 0.6000
Manufacturers catalog numberTSJ89270
Manufacturer gradeTN60
Material gradeP01; P10; P20
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
