Kyocera

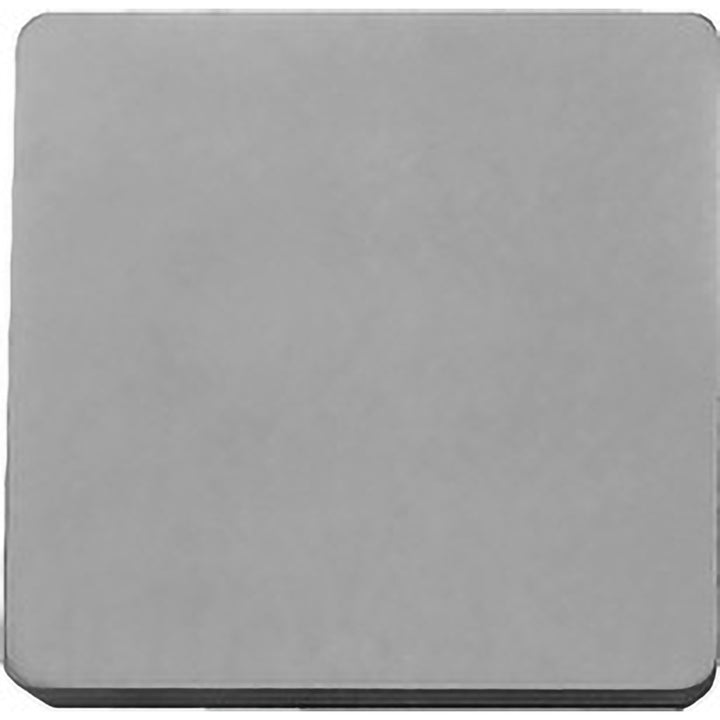

SPG432 Cermet Insert, Grade TN100M, TiCN - Kyocera TSP89025
MFR# TSP89025ISO/ANSI# SPG432Cat# SPG432TN100MSeries GPM
$16.63List $23.94
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeTN100M
MaterialCermet
CoatingTiCN
Description
The Kyocera TSP89025 is a SPG432 cermet indexable insert, grade TN100M, TiCN coated. Suited for steel.
Specifications
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Included angle90degree
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCermet
Insert shapeSquare
Insert size code432
Insert styleSPG
Insert thickness in3/16
Iso codeSPG432
Length range0.5000 - 0.6000
Manufacturers catalog numberSPG432TN100M
Manufacturer gradeTN100M
Material gradeP20
Multi use applicationChamfering; Facing; Shouldering
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
