Kyocera

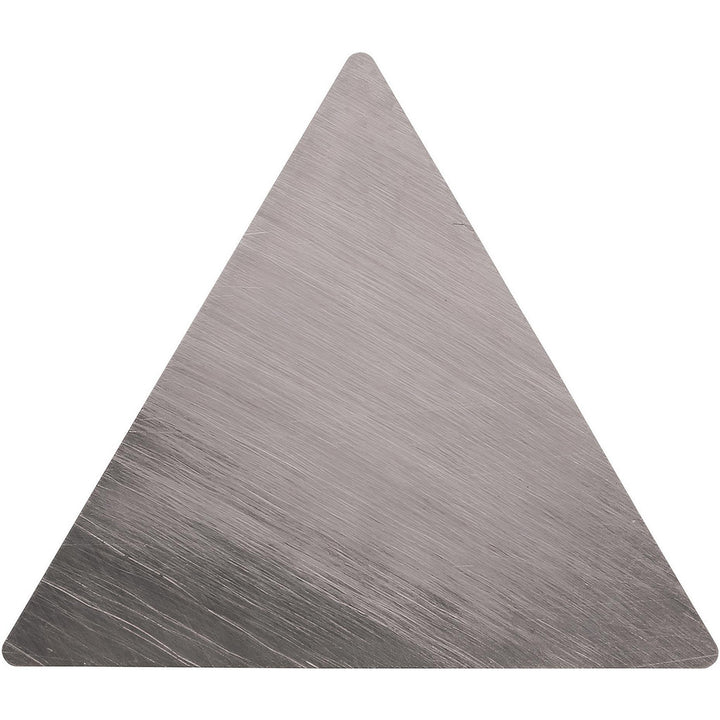

TPGN160308 Cermet Insert, Grade TN610, TiCN - Kyocera TSS06937
MFR# TSS06937ISO/ANSI# TPG322TN610Series ISOI
$12.55List $18.06
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTN610
MaterialCermet
CoatingTiCN
Description
The Kyocera TSS06937 is a TPGN160308 cermet indexable insert, grade TN610, TiCN coated. Suited for steel.
Specifications
Clearance codeP
Coating finishTiCN
Coating processUncoated
Corner radius in1/32
Full radiusNo
Included angle60degree
Industry standard numberTPG322TN610
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6501
Insert materialCermet
Insert shapeTriangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160308
Length range0.6500 - 0.7000
Manufacturers catalog numberTSS06937
Manufacturer gradeTN610
Material gradeP01; P10
Maximum depth of cut0.2167
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle11
Tolerance codeG
Width0.6501in
Wiper edgeNo
