Kyocera

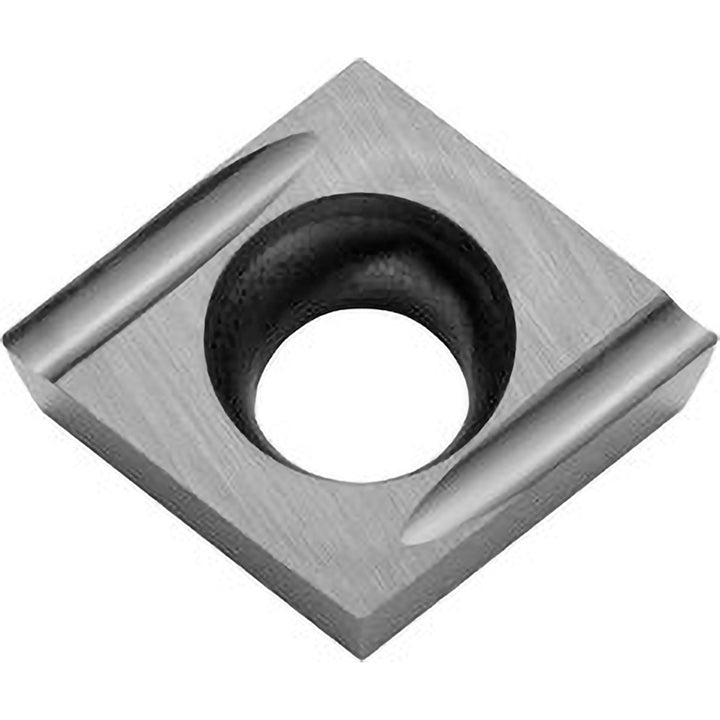

CCGT0602003FL-U Carbide Insert, Grade KW10, WC-Co - Kyocera TWE00052
MFR# TWE00052ISO/ANSI# CCGT21501FLUKW10Series ISOI
$15.76List $22.68
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeKW10
MaterialCarbide
CoatingWC-Co
Description
The Kyocera TWE00052 is a CCGT0602003FL-U carbide indexable insert, grade KW10, WC-Co coated. Suited for non-ferrous metal, superalloys.
Specifications
Chip breakerU
Clearance codeC
Coating finishWC-Co
Coating processUncoated
Corner radius0.0010
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1102
Included angle80
Industry standard numberCCGT21501FLUKW10
Inscribed circle in1/4
Insert handLeft Hand
Insert holding methodScrew
Insert length in1/4
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21501
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT0602003FL-U
Length range0.0000 - 0.3000
Manufacturers catalog numberTWE00052
Manufacturer gradeKW10
Material gradeK10; K20
Maximum depth of cut0.0833
Multi use applicationBoring; External Turning; Facing; Internal Facing; Sub-Spindle
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal; Superalloys
RakePositive
Rake angle30
Relief angle7
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
