Lapeer

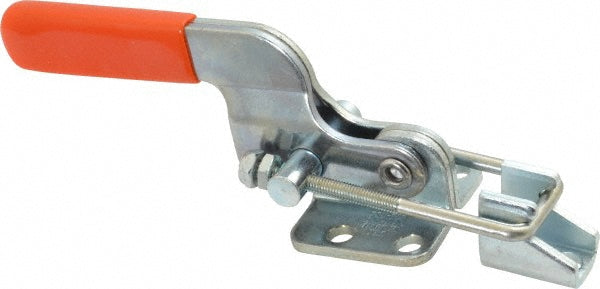

Toggle Clamp - Lapeer PCU-700
MFR# PCU-700
$17.20List $21.59
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer PCU-700 is a carbon steel toggle clamp.
Specifications
Bar styleU-Hook
Bar thickness0.1900
Bar width1.0000
Base length in1-9/16
Base styleFlanged
Base to center of bar in5/8
Base width in1.7500
Body materialCarbon Steel
Clamping orientationHorizontal
Drawing movement in1-3/4
Handle colorOrange
Handle styleStraight
Hook adjustment0.44
IncludesLatch Plate
Length distance between mount holes in3/4
Load capacity700lb
Load capacity kg317.51
MaterialCarbon Steel
Mounting hole diameter0.2638
Mounting hole diameter (mm)6.70
Overall height in2-1/16
Overall length in5-3/8
Width distance between mounting holes1.2500
Width distance between mount holes in1-1/4
