Lapeer

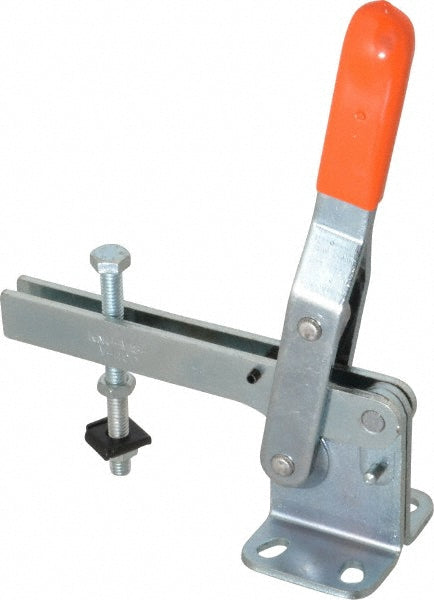

Toggle Clamp - Lapeer V-400
MFR# V-400
$23.80List $29.87
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Lapeer V-400 is a carbon steel toggle clamp.
Specifications
Bar end typeFixed Spindle
Bar opening degrees100
Bar styleU-Bar
Bar thickness2.0000
Bar width in5/16
Base length (mm)50.80
Base styleFlanged
Base width in2.5000
Front of base to tip of toggle bar in3-5/8
Front of base to toggle tip3.62in
Handle colorOrange
Handle materialCarbon Steel
Handle movement degrees60
Handle orientationVertical
Handle styleStraight
Height under bar2.0000
Holding capacity kg181.44
Holding capacity lb400.00
Includes(2) Flanged Washers; (2) Nuts; Spindle
Length distance between mount holes in1.25; 1-1/4
MaterialCarbon Steel
Mounting hole diameter0.2500
Number of mounting holes4
Overall height8.0000
Overall length in6-1/8
Spindle length3-5/8
Spindle thread size5/16-18
Spindle travel in2.8750
Width distance between mount holes in1-3/4
