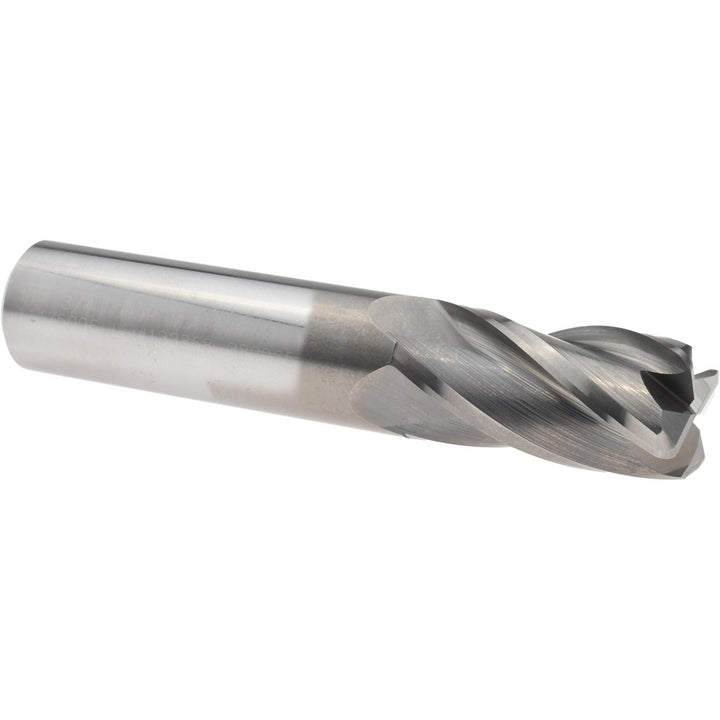

3/4" 4-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 11175006

M.A. Ford.

3/4" 4-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 11175006

MFR# 11175006Series 111

$315.60List $404.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide

Description

The M.A. Ford. 11175006 is a 3/4 4-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1-1/2 length of cut, 4 overall length. Series 111.

Specifications

CentercuttingYes
ChipbreakerNo
Coolant throughNo
Corner radius0.0900
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1-1/2
Length typeRegular
Manufacturers catalog number11175006
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/4
Mill diameter tolerance+0.0000/-0.0030 in
Number of flutes4
Overall length in4
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Reach length in1-1/2
Shank diameter in3/4
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
