M.A. Ford.

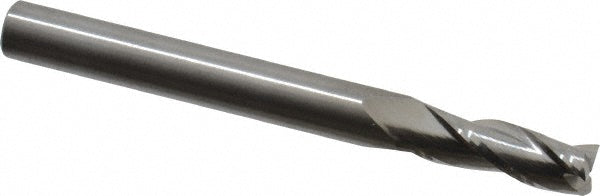

15/64" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 11623440
MFR# 11623440Series 116
$36.84List $47.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter15/64
Flutes3
MaterialSolid Carbide
Description
The M.A. Ford. 11623440 is a 15/64 3-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 116.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeRegular
Material gradeMicrograin
Mill diameter in15/64
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2-1/2
Shank diameter in1/4
Shank typeStraight-Cylindrical
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
