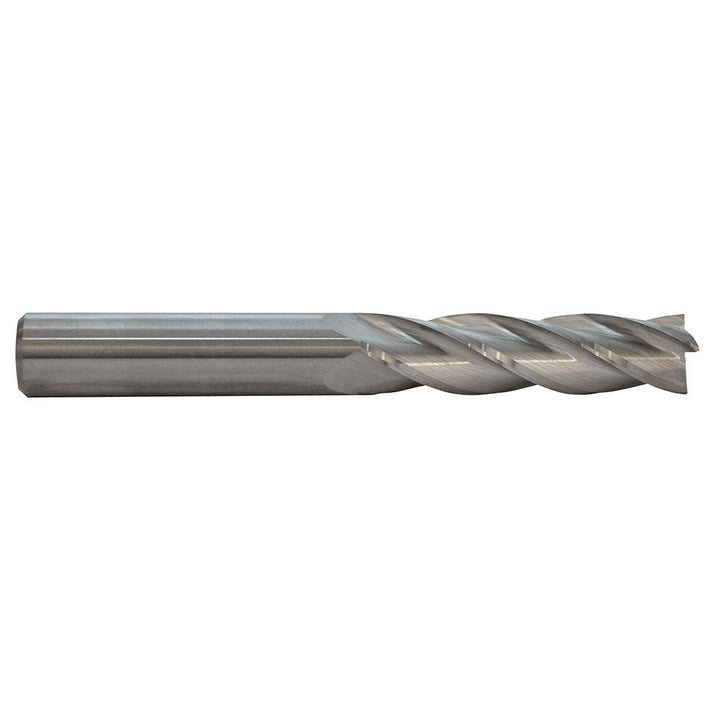

3/8" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 12237500

M.A. Ford.

3/8" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 12237500

MFR# 12237500Series 122

$81.25List $104.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide

Description

The M.A. Ford. 12237500 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill. 1-1/2 length of cut, 3-1/2 overall length. Series 122.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Length typeExtra Long
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.003 in
Number of flutes4
Overall length in3-1/2
Shank diameter in3/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
