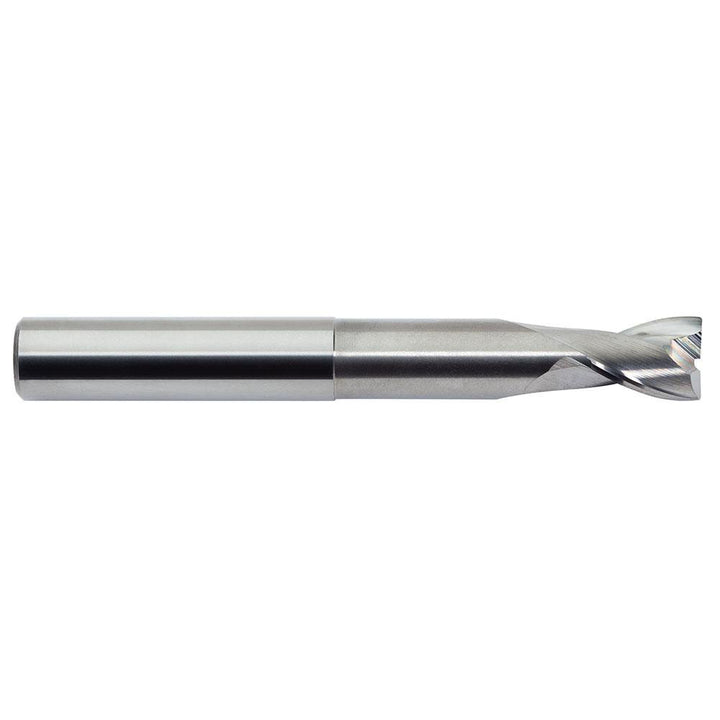

0.4724in" 2-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13547209N5
MFR# 13547209N5Series 135N
$159.10List $204.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The M.A. Ford. 13547209N5 is a 0.4724in 2-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. Series 135N.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.1570
Corner radius tolerance+0.050 to -0.050 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut1.5000in
Length typeRegular
Manufacturers catalog number13547209N5
Material applicationNon-Ferrous Metal
Material removal typeRoughing & Finishing
Mill diameter0.4724in
Mill diameter tolerance+0.000/-0.070 mm
Neck diameter (mm)11.40
Number of flutes2
Overall length (mm)110.00mm
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length (mm)62.00
Shank diameter (mm)12.00mm
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
