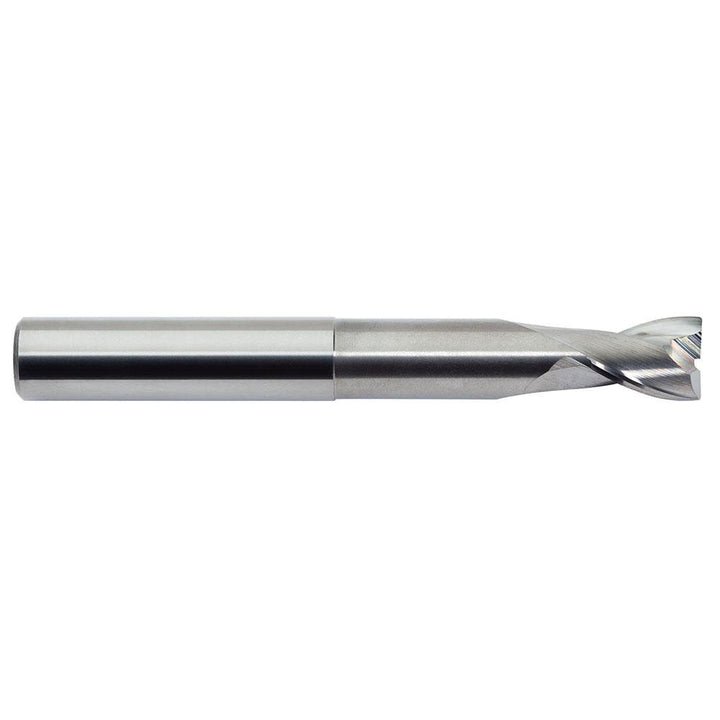

1/2" 2-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13550001N

MFR# 13550001NSeries 135

$167.80List $215.22 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes2

MaterialSolid Carbide

CoatingUncoated

Description

The M.A. Ford. 13550001N is a 1/2 2-flute Solid Carbide (Micrograin) corner radius end mill. Suited for non-ferrous metal. 5/8 length of cut, 4 overall length. Series 135.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0200

Corner radius tolerance+0.0020 to -0.0020 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix angle30

Helix styleMedium

Length of cut in5/8

Length typeRegular

Manufacturers catalog number13550001N

Material applicationNon-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing & Finishing

Maximum helix angle30

Mill diameter in1/2

Mill diameter tolerance+0.0000 to -0.0030 in

Minimum helix angle30

Neck diameter0.5000

Number of flutes2

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in2-1/8

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
