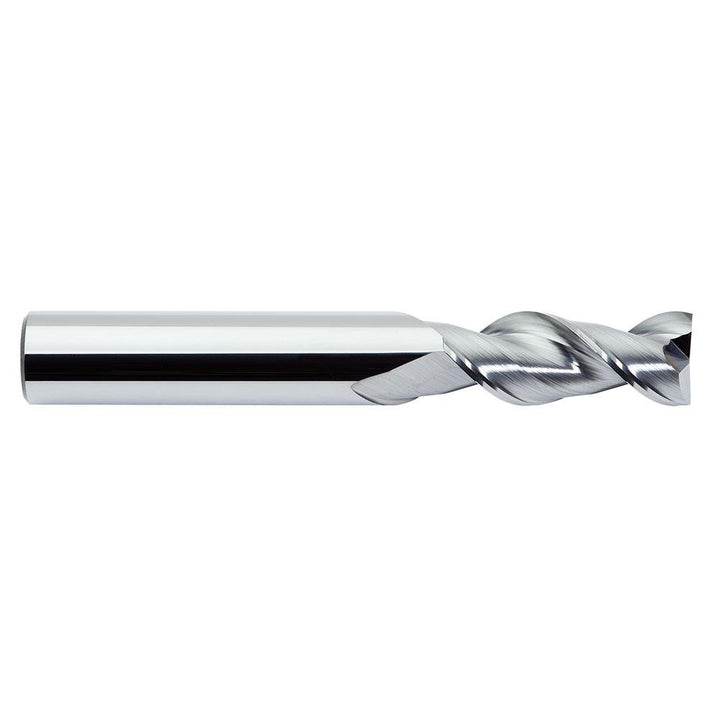

3/16" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 13618754W

MFR# 13618754WSeries 136

$64.14List $82.26 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The M.A. Ford. 13618754W is a 3/16 2-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series 136.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in3/4

Length of cut range0.7000 - 0.8000

Length typeLong

Material gradeMicrograin

Mill diameter in3/16

Mill diameter tolerance+0.000 to -0.002 in

Number of flutes2

Overall length in2-1/2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeWeldon Flat

Variable helixNo

Variable indexNo
