M.A. Ford.

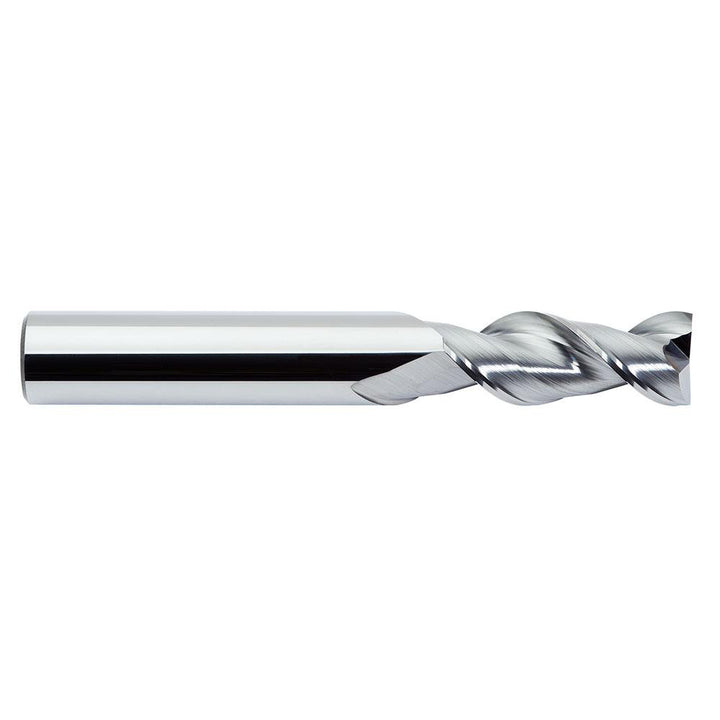

1/2" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 13650000

MFR# 13650000Series 136

$109.82List $140.85 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The M.A. Ford. 13650000 is a 1/2 2-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1-1/4 length of cut, 3-1/2 overall length. Series 136.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeExtra Long

Material gradeMicrograin

Mill diameter in1/2

Mill diameter tolerance+0.000/-0.003 in

Number of flutes2

Overall length in3-1/2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
