M.A. Ford.

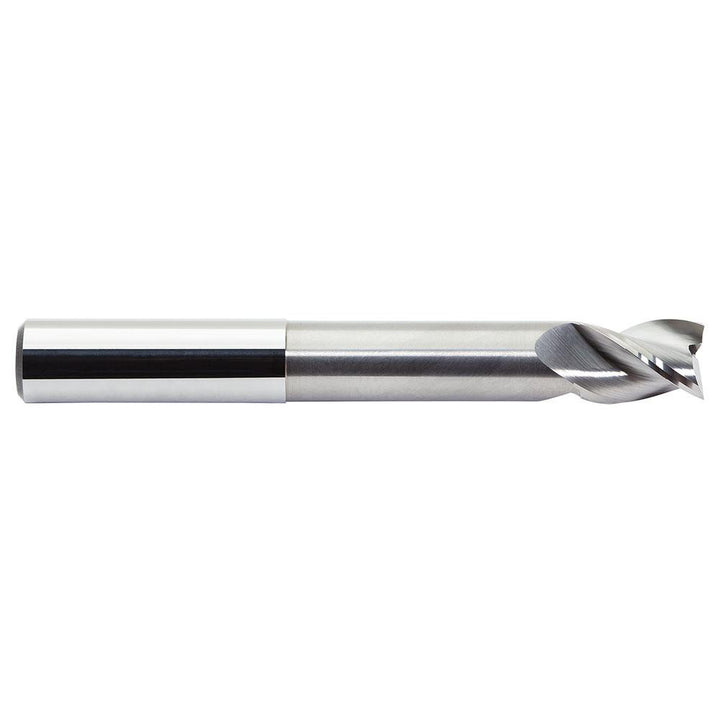

3/16" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 13818757N

MFR# 13818757NSeries 138N

$44.80List $57.46 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The M.A. Ford. 13818757N is a 3/16 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1/4 length of cut, 2 overall length. Series 138N.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle36

Length of cut in1/4

Length of cut range0.2000 - 0.3000

Length typeStub

Material gradeMicrograin

Mill diameter in3/16

Mill diameter tolerance+0.0000 to -0.0005 in

Neck length1

Number of flutes3

Overall length in2

Primary workpiece materialNon-Ferrous Metal

Reach length1

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
