M.A. Ford.

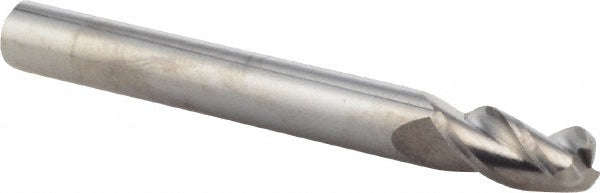

0.2362in" 3-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13823620R.079
MFR# 13823620R.079Series 138
$66.53List $85.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The M.A. Ford. 13823620R.079 is a 0.2362in 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. Series 138.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0790
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut0.6250in
Length typeShort
Manufacturers catalog number13823620R.079
Material applicationNon-Ferrous Metal
Material removal typeRoughing & Finishing
Mill diameter0.2362in
Mill diameter tolerance+0.000/-0.013 mm
Number of flutes3
Overall length (mm)58.00mm
PitchNormal
Primary workpiece materialNon-Ferrous Metal
Reach length (mm)13.00
Shank diameter (mm)6.00mm
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
