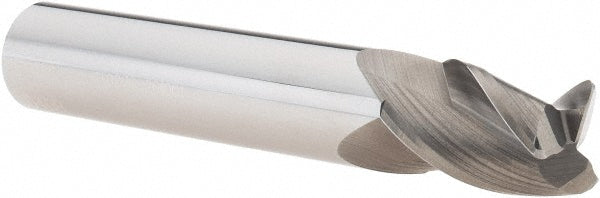

1/2in" 3-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13850001R.040

M.A. Ford.

1/2in" 3-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 13850001R.040

MFR# 13850001R.040Series 138

$78.66List $100.88 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The M.A. Ford. 13850001R.040 is a 1/2in 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 3/4in length of cut, 3in overall length. Series 138.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0400
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in3/4in
Length typeShort
Manufacturers catalog number13850001R.040
Material applicationNon-Ferrous Metal
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance+0.0000/-0.0005 in
Number of flutes3
Overall length in3in
PitchNormal
Primary workpiece materialNon-Ferrous Metal
Reach length in3/4
Shank diameter in1/2in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
