3/4" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 13875002N

MFR# 13875002NSeries 138N

$410.28List $526.20 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

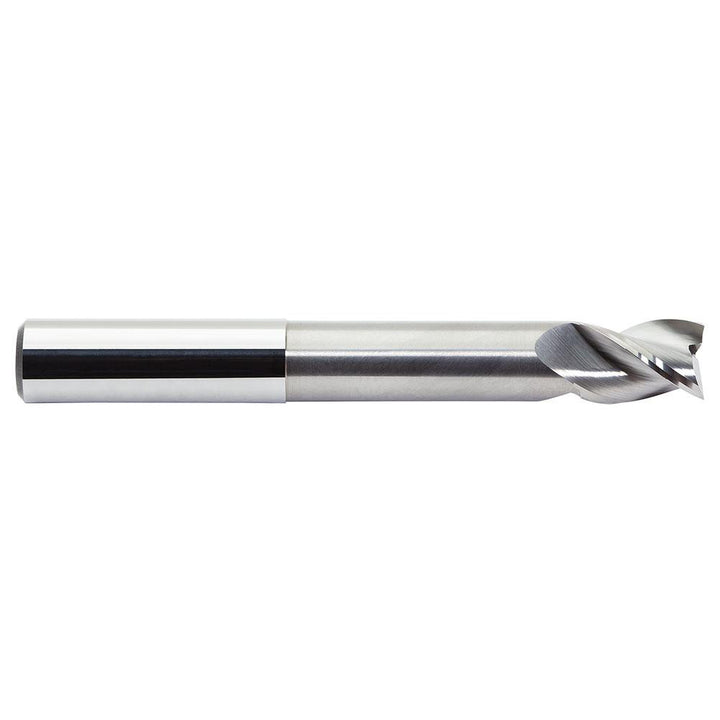

The M.A. Ford. 13875002N is a 3/4 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1 length of cut, 6 overall length. Series 138N.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle36

Length of cut in1

Length of cut range1.0000 - 1.2500

Material gradeMicrograin

Mill diameter in3/4

Mill diameter tolerance+0.000 to -0.0005 in

Neck length3.375

Number of flutes3

Overall length in6

Primary workpiece materialNon-Ferrous Metal

Reach length3.38

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
