M.A. Ford.

1/8" 3-Flute Solid Carbide Ball End Mill - M.A. Ford. 138B12501

MFR# 138B12501Series 138B

$46.40List $59.51 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

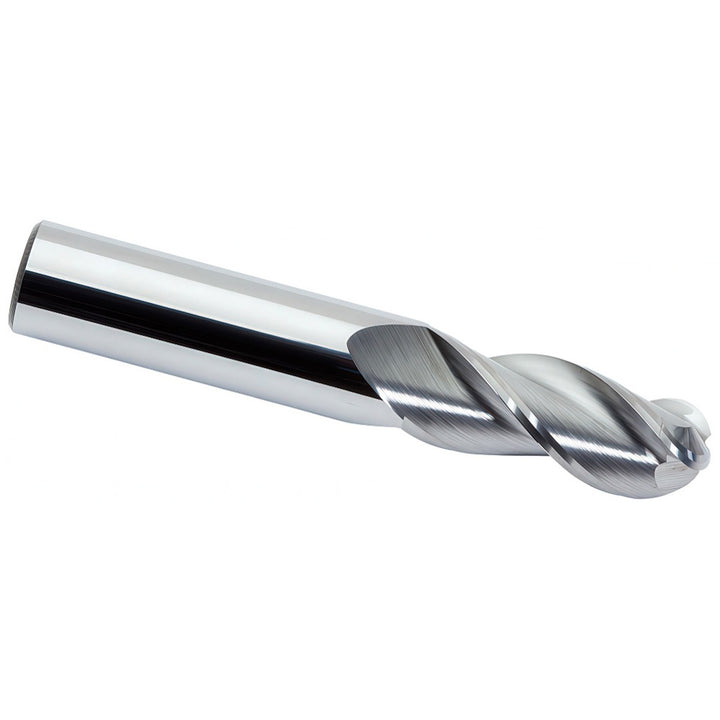

The M.A. Ford. 138B12501 is a 1/8 3-flute Solid Carbide ball end mill. Suited for non-ferrous metal. 1/2 length of cut, 2 overall length. Series 138B.

Specifications

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle36

Length of cut in1/2

Length typeRegular

Mill diameter in1/8

Mill diameter tolerance+0.000 to 0.005 in

Nose radius0.0625

Number of flutes3

Overall length in2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/8

Shank diameter toleranceh6

Single or double endSingle

Variable helixNo

Variable indexNo
