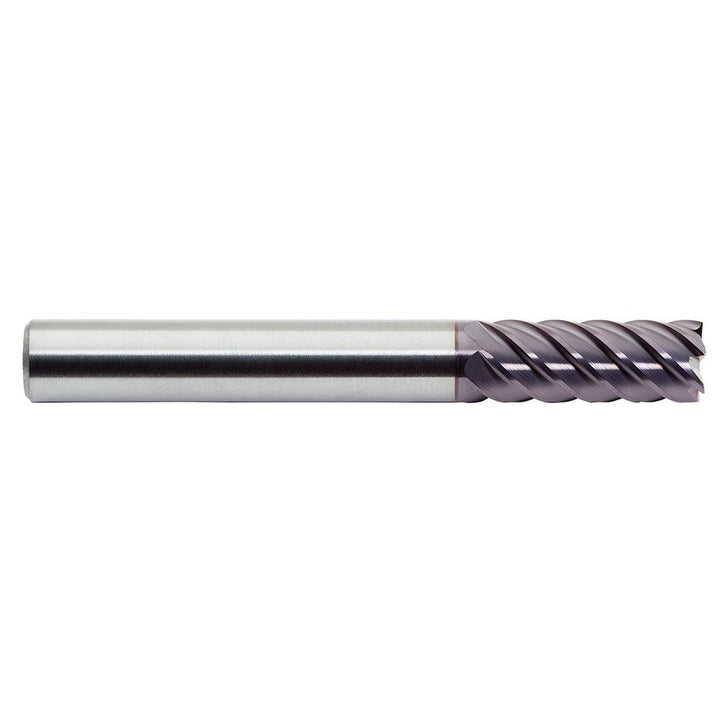

0.1968in" 4-Flute Solid Carbide Corner Radius End Mill, ALtima 52 - M.A. Ford. 15719683A

M.A. Ford.

0.1968in" 4-Flute Solid Carbide Corner Radius End Mill, ALtima 52 - M.A. Ford. 15719683A

MFR# 15719683ASeries 157

$134.57List $172.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingALtima 52

Description

The M.A. Ford. 15719683A is a 0.1968in 4-flute Solid Carbide corner radius end mill with a ALtima 52 finish for longer tool life. Suited for hard material. Series 157.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima 52
Coolant throughNo
Corner radius0.0390
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut0.8125in
Length typeRegular
Manufacturers catalog number15719683A
Material applicationHard Material
Material removal typeRoughing & Finishing
Mill diameter0.1968in
Mill diameter tolerance+0.000/-0.048 mm
Number of flutes4
Overall length (mm)90.00mm
PitchNormal
Primary workpiece materialHard Material
Reach length (mm)15.00
Shank diameter (mm)6.00mm
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
