3/8" 4-Flute Solid Carbide Square End Mill, TiN - M.A. Ford. 16337500T

M.A. Ford.

3/8" 4-Flute Solid Carbide Square End Mill, TiN - M.A. Ford. 16337500T

MFR# 16337500TSeries 163

$55.72List $71.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingTiN

Description

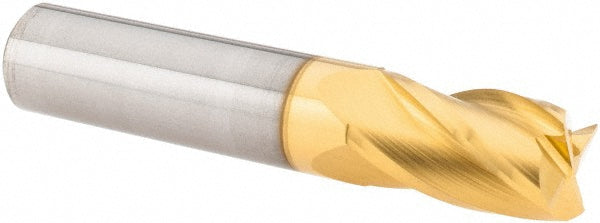

The M.A. Ford. 16337500T is a 3/8 4-flute Solid Carbide square end mill. 5/8 length of cut, 2 overall length. Series 163.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeStub
Mill diameter in3/8
Mill diameter tolerance+0.000 to -0.003 in
Number of flutes4
Overall length in2
Shank diameter in3/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
