M.A. Ford.

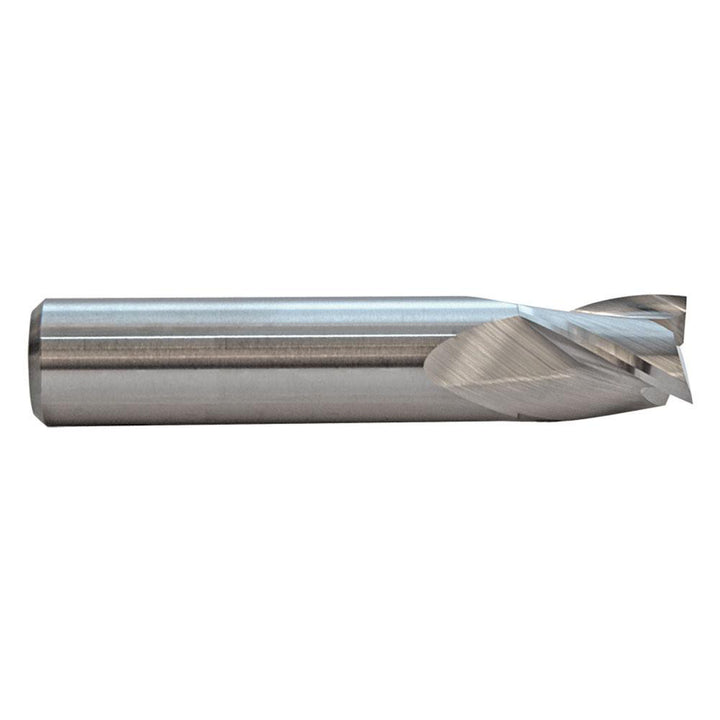

1/16" 3-Flute Solid Carbide Corner Radius End Mill - M.A. Ford. 16906250R.015F

MFR# 16906250R.015FSeries 169

$60.85List $78.05 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/16

Flutes3

MaterialSolid Carbide

Description

The M.A. Ford. 16906250R.015F is a 1/16 3-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1/8 length of cut, 1-1/2 overall length. Series 169.

Specifications

CentercuttingYes

ChipbreakerNo

Coolant throughNo

Corner radius0.0150

Corner radius tolerance+0.00120 to -0.00120 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleMedium

Length of cut in1/8

Length typeShort

Manufacturers catalog number16906250R.015F

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in1/16

Mill diameter tolerance+0.0000 to -0.0020 in

Number of flutes3

Overall length in1-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Reach length in1/8

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
