M.A. Ford.

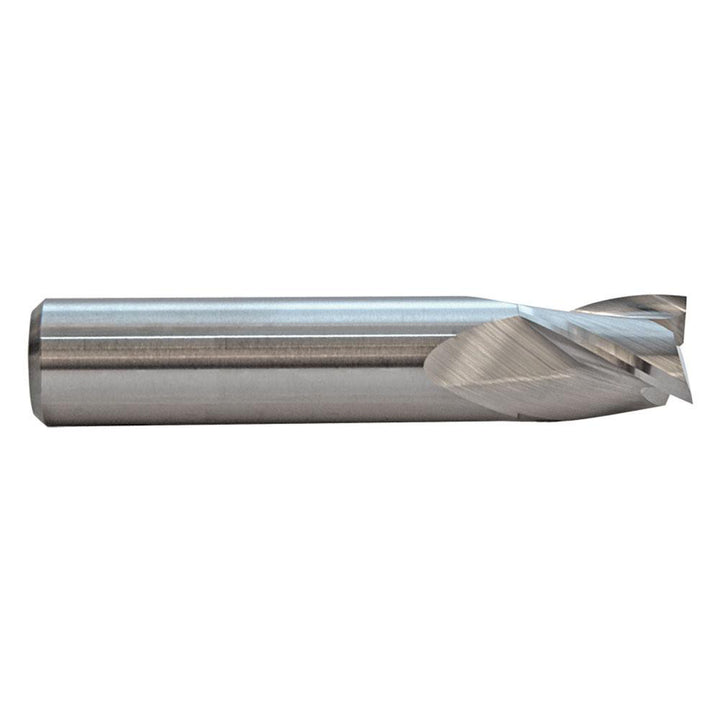

1/8" 3-Flute Solid Carbide Square End Mill, TiCN - M.A. Ford. 16912500C

MFR# 16912500CSeries 169

$19.97List $25.61 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes3

MaterialSolid Carbide

CoatingTiCN

Description

The M.A. Ford. 16912500C is a 1/8 3-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 1/4 length of cut, 1-1/2 overall length. Series 169.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Coating finish familyTiCN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/4

Length of cut range0.2000 - 0.3000

Length typeStub

Material gradeMicrograin

Mill diameter in1/8

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes3

Overall length in1-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials

Shank diameter in1/8

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
