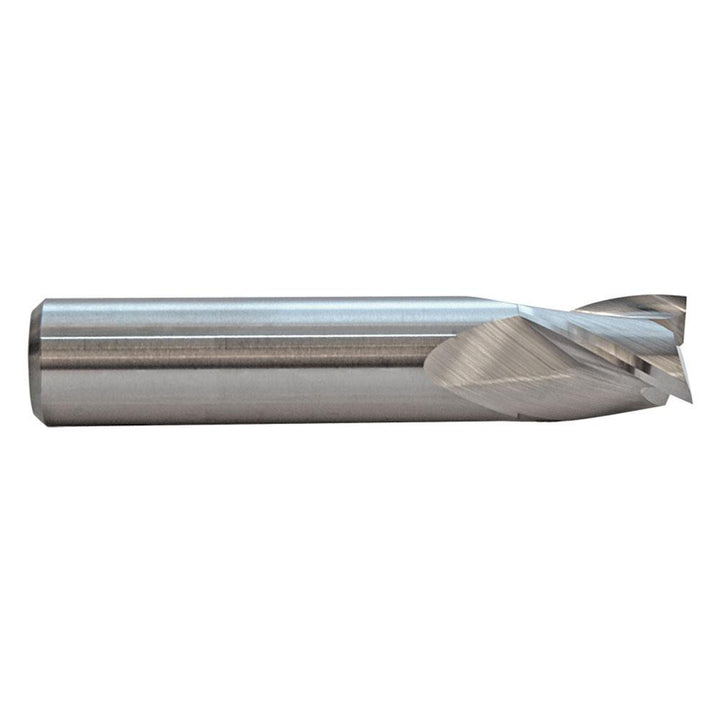

5/32" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 16915620

M.A. Ford.

5/32" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 16915620

MFR# 16915620Series 169

$25.49List $32.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The M.A. Ford. 16915620 is a 5/32 3-flute Solid Carbide (Micrograin) square end mill. 5/16 length of cut, 2 overall length. Series 169.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/16
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2
Shank diameter in3/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Seco5/32" 3-Flute Solid Carbide Square End Mill, ANF - Seco 10023003 $33.29 Hertel5/32" 3-Flute Solid Carbide Square End Mill - Hertel E599924448 $24.98 Seco5/32" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 17003402 $37.89 Titan USA5/32" 3-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC11410 $17.32
