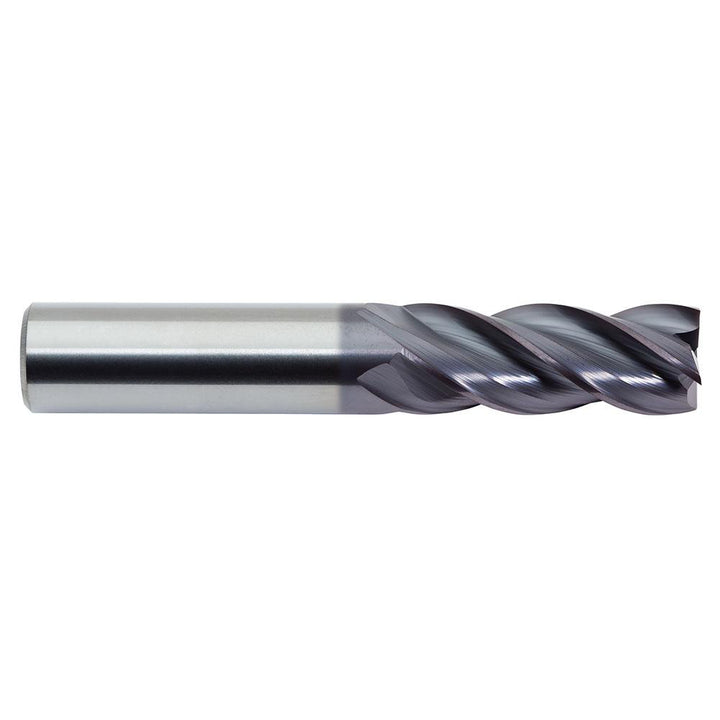

1/16" 4-Flute Solid Carbide Square End Mill, ALtima - M.A. Ford. 17706250A

M.A. Ford.

1/16" 4-Flute Solid Carbide Square End Mill, ALtima - M.A. Ford. 17706250A

MFR# 17706250ASeries 177

$37.90List $48.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes4
MaterialSolid Carbide
CoatingALtima

Description

The M.A. Ford. 17706250A is a 1/16 4-flute Solid Carbide (Micrograin) square end mill with a ALtima finish for longer tool life. 1/8 length of cut, 1-1/2 overall length. Series 177.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle35/38
Length of cut in1/8
Length of cut range0.1000 - 0.2000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00031 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
