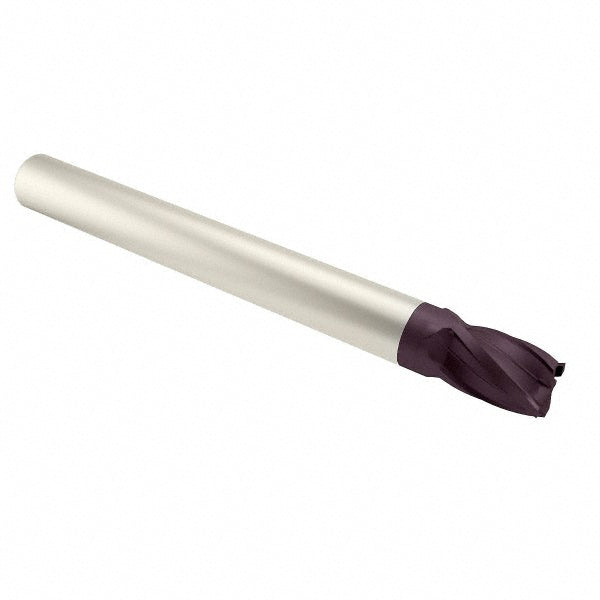

1/8in" 4-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17712502A

M.A. Ford.

1/8in" 4-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17712502A

MFR# 17712502ASeries 177

$26.02List $33.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8in
Flutes4
MaterialSolid Carbide
CoatingALtima

Description

The M.A. Ford. 17712502A is a 1/8in 4-flute Solid Carbide corner radius end mill with a ALtima finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1/8in length of cut, 1-1/2in overall length. Series 177.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima
Coolant throughNo
Corner radius0.0150
Corner radius tolerance+0.0012 to -0.0012 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Length of cut in1/8in
Length typeShort
Manufacturers catalog number17712502A
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material removal typeRoughing & Finishing
Mill diameter in1/8in
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes4
Overall length in1-1/2in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length in1/8
Shank diameter in1/8in
Shank diameter tolerance+0.0000/-0.0003 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
