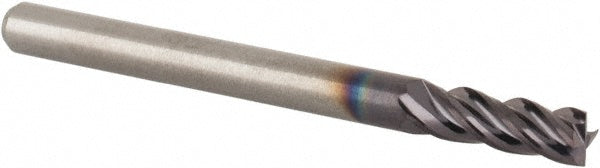

1/8" 4-Flute Solid Carbide Square End Mill, TiAlN - M.A. Ford. 17712510A

MFR# 17712510ASeries 177

$26.13List $33.51 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The M.A. Ford. 17712510A is a 1/8 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. 3/8 length of cut, 1-1/2 overall length. Series 177.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in3/8

Length of cut range0.3000 - 0.5000

Material gradeMicrograin

Mill diameter in1/8

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in1-1/2

Shank diameter in1/8

Shank diameter tolerance+0/-0.00031 in

Shank typeStraight-Cylindrical

Variable helixYes

Variable indexYes
