5/32" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 17715610A

M.A. Ford.

5/32" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 17715610A

MFR# 17715610ASeries 177

$36.88List $47.31 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide

Description

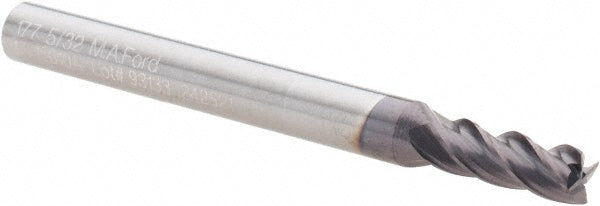

The M.A. Ford. 17715610A is a 5/32 4-flute Solid Carbide square end mill. 7/16 length of cut, 2 overall length. Series 177.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle35/38
Length of cut in7/16
Length of cut range0.3000 - 0.5000
Mill diameter in5/32
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0/-0.00031 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
