M.A. Ford.

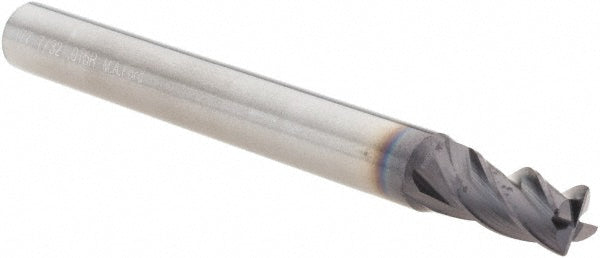

7/32" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - M.A. Ford. 17721812A

MFR# 17721812ASeries 177

$50.75List $65.08 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/32

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The M.A. Ford. 17721812A is a 7/32 4-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, superalloys & titanium. 7/16 length of cut, 2-1/2 overall length. Series 177.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius in1/64

Corner radius tolerance+0.00120 to -0.00120 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix angle35 - 38

Helix styleVariable

Length of cut in7/16

Length typeShort

Manufacturers catalog number17721812A

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material removal typeRoughing & Finishing

Maximum helix angle38

Mill diameter in7/32

Mill diameter tolerance+0.0000 to -0.0020 in

Minimum helix angle35

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in7/16

Shank diameter in1/4

Shank diameter tolerance+0.0000 to -0.0003 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
