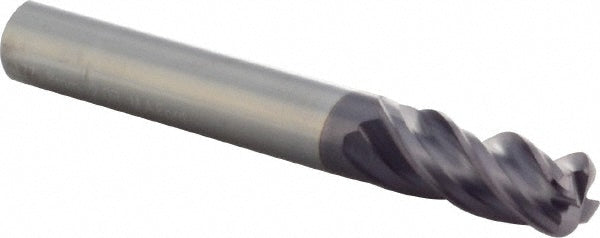

0.3150" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - M.A. Ford. 17731505A

MFR# 17731505ASeries 177

$58.29List $74.76 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The M.A. Ford. 17731505A is a 0.3150 4-flute Solid Carbide (High Performance) corner radius end mill. Suited for steel, stainless steel, cast iron, superalloys & titanium. Series 177.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0790

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleVariable

Length of cut1.1811

Length typeShort

Manufacturers catalog number17731505A

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material gradeHigh Performance

Material removal typeRoughing & Finishing

Mill diameter0.3150

Mill diameter tolerance+0.000 to -0.058 mm

Number of flutes4

Overall length (mm)63.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length (mm)19.00

Shank diameter (mm)8.00

Shank diameter tolerance+0.000 to -0.009 mm

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
