3/8" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 17737500A

M.A. Ford.

3/8" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 17737500A

MFR# 17737500ASeries 177

$68.35List $87.67 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide

Description

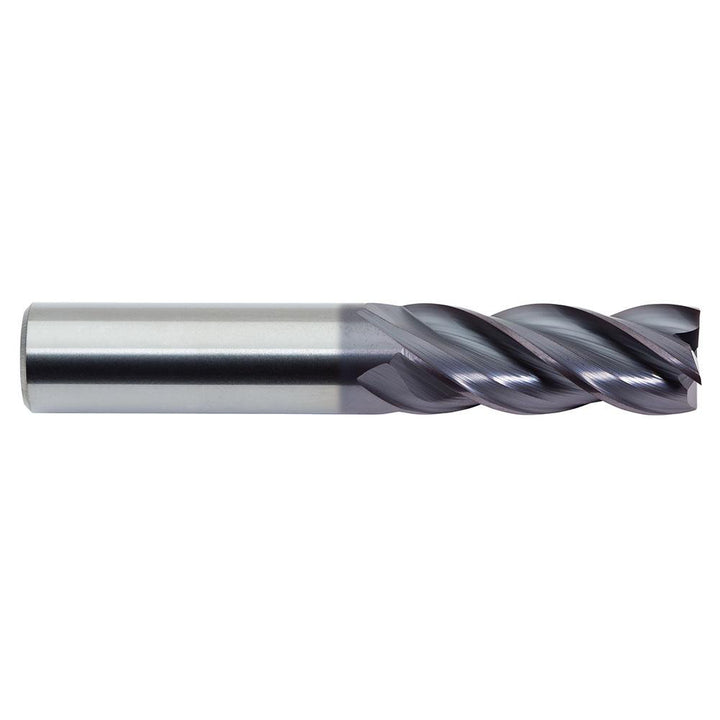

The M.A. Ford. 17737500A is a 3/8 4-flute Solid Carbide (Micrograin) square end mill. 3/8 length of cut, 2 overall length. Series 177.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle35/38
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.003 in
Number of flutes4
Overall length in2
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
