1in" 5-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17810032NA

M.A. Ford.

1in" 5-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17810032NA

MFR# 17810032NASeries 178N

$754.07List $967.13 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1in
Flutes5
MaterialSolid Carbide
CoatingALtima

Description

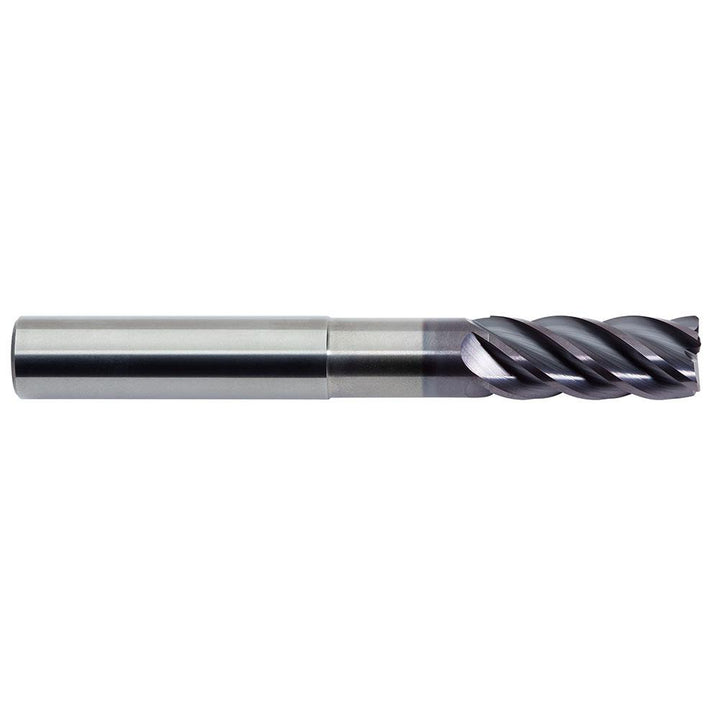

The M.A. Ford. 17810032NA is a 1in 5-flute Solid Carbide corner radius end mill with a ALtima finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 3in length of cut, 6in overall length. Series 178N.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima
Coolant throughNo
Corner radius0.0150
Corner radius tolerance+0.0012 to -0.0012 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in3in
Length typeLong
Manufacturers catalog number17810032NA
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material removal typeRoughing & Finishing
Mill diameter in1in
Mill diameter tolerance+0.0000/-0.0030 in
Neck diameter0.9600in
Number of flutes5
Overall length in6in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length in4
Shank diameter in1in
Shank diameter tolerance+0.0000/-0.0005 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
