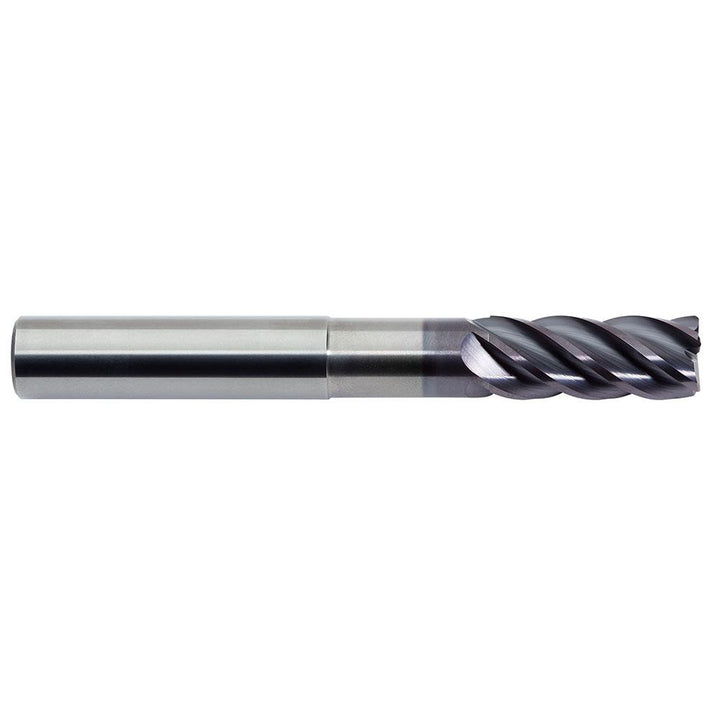

1/2in" 5-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17850034NA

M.A. Ford.

1/2in" 5-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17850034NA

MFR# 17850034NASeries 178N

$262.40List $336.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes5
MaterialSolid Carbide
CoatingALtima

Description

The M.A. Ford. 17850034NA is a 1/2in 5-flute Solid Carbide corner radius end mill with a ALtima finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-3/8in length of cut, 5in overall length. Series 178N.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1-3/8in
Length typeLong
Manufacturers catalog number17850034NA
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance+0.0000/-0.0030 in
Neck diameter0.4800in
Number of flutes5
Overall length in5in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length in3-1/8
Shank diameter in1/2in
Shank diameter tolerance+0.0000/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
