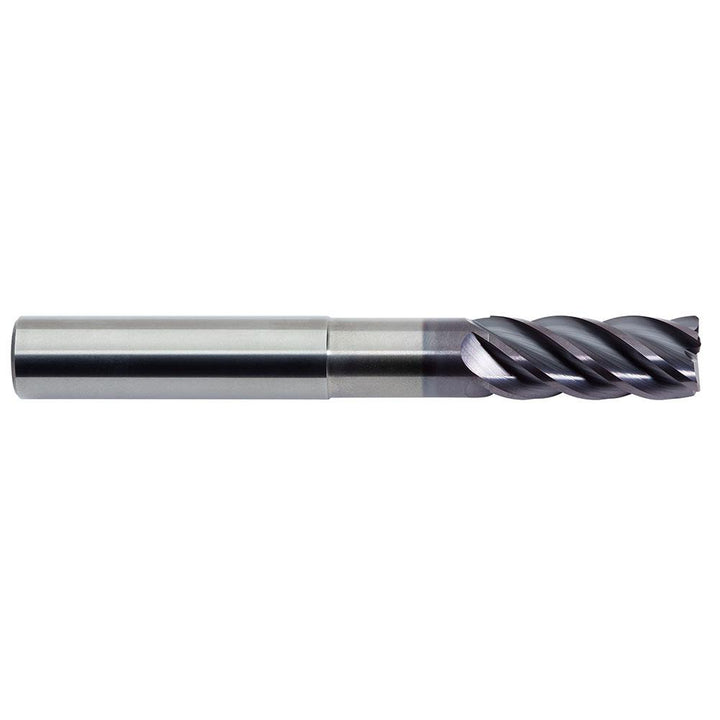

5/8in" 5-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17862522NA

M.A. Ford.

5/8in" 5-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17862522NA

MFR# 17862522NASeries 178N

$318.73List $408.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8in
Flutes5
MaterialSolid Carbide
CoatingALtima

Description

The M.A. Ford. 17862522NA is a 5/8in 5-flute Solid Carbide corner radius end mill with a ALtima finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/2in length of cut, 4in overall length. Series 178N.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishALtima
Coolant throughNo
Corner radius0.0150
Corner radius tolerance+0.0012 to -0.0012 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1-1/2in
Length typeRegular
Manufacturers catalog number17862522NA
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material removal typeRoughing & Finishing
Mill diameter in5/8in
Mill diameter tolerance+0.0000/-0.0030 in
Neck diameter0.6000in
Number of flutes5
Overall length in4in
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length in2-1/8
Shank diameter in5/8in
Shank diameter tolerance+0.0000/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
